NC3FX

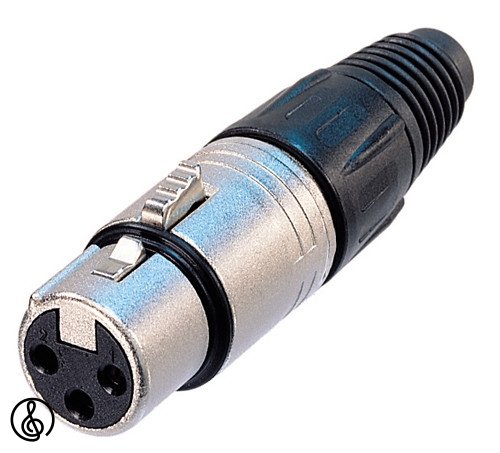

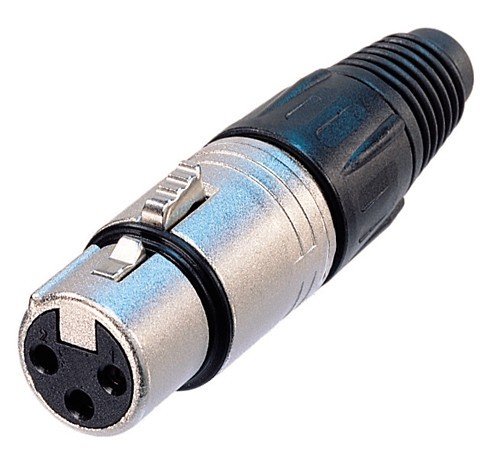

3 pole cable connector, female. Nickel housing and silver contacts.
Rigtig lækkert originalt Neutrik han XLR kabelstik.
Alle kontakflader forsølvet for at opnå lang levetid og varig optimal kontakt.
Ved montering:
Indvendig forbindelse: Loddefliger
TECHNICAL DATA
Electrical
Number of contacts: 3
Contact resistance: = 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: = 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: = 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Materials
Shell: ZnAl4Cu1, gal Ni over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuSn8
Contact surface: gal 2 µm Ag
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard
XLR Cable Connectors / X Series
The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.
