» Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
» Pat. two-piece clamping nut for maximum strength of connection
» Solder or crimp connection
» CE and IEC compliant thanks to full Makrolon insulation
» 24 carat multi layer gold plating
» Max. constant current 70 A
» Twist-proof mounting
» Puzzle plate system

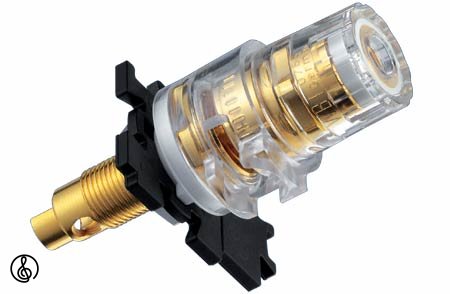

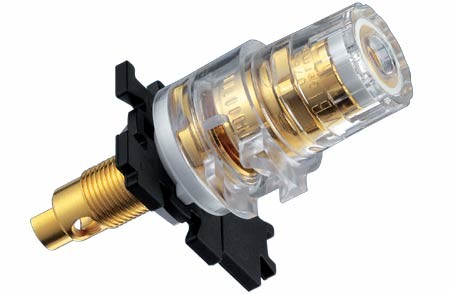

Midline Pole Terminal Copper alloy, gold-plated with Makrolon full insulation, CE and IEC compliant
The clamping nut is designed to provide a perfect grip. The gold-plated surface prevents any type of corrosion. IC and IEC compliance are achieved by transparent full Makrolon insulation of all live parts.
Outer connection >> 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
>> Spades and crimped cable ends (up to 6 mm²/ 9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.
