VDH D-102 MK3 Hybrid Signalkabel

Super kabel utermineret fra Van Den Hul, har vundet flere priser bl.a. "product of the year".
Den angivet pris er pr. meter utermineret. Skal du f.eks. bruge 3 meter skriver du blot 3 ved antal.

With our ever continuing technical improvements, it is logical to replace the already since 1982 available D - 102 Series (after 24 upgrades in the meantime) by an actual HYBRID version.
Now the same Linear Structured Carbon ® technology as used in our The SECOND ® is applied in this product.

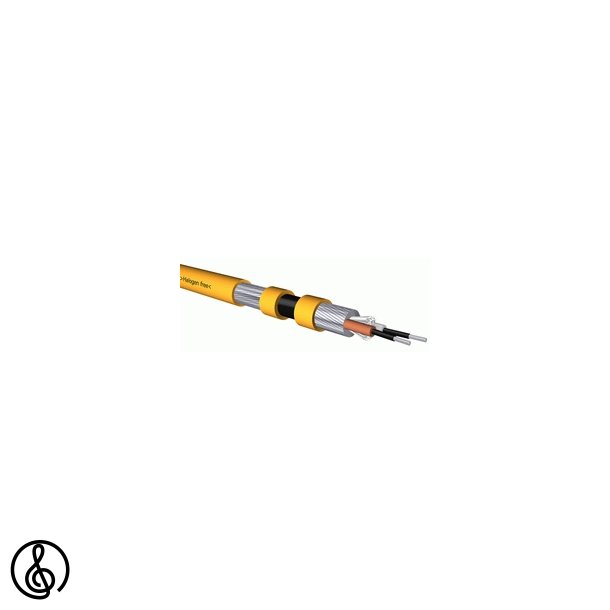

The D - 102 III HYBRID is a warm yellow-orange coloured very flexible balanced interconnect with a 3 layer shielding.
The 2 centre conductors are made of 40 dense and very pure silver coated strands made of a very high grade Matched Crystal (MC) OFC. Over each centre conductor an extra Linear Structured Carbon ® (LSC) saturated layer is applied.
This extra layer of LSC highly improves the quality of the signal transmission by performing electrical bridging on micro-scale and by converting the external magnetic field close to the conductors into an electrical signal again.
The resistance of each centre conductor is 5.5 Ohm/100 meter.
The capacitance between the 2 internal conductors is a very low 37 pF/meter; so in balanced operation, even in rather high impedant circuitry, the overall losses and/or phase-shift remain very low.
In unbalanced operation the two internal conductors can simply be taken together with the shield acting as the signal return, though the better and preferred layout (which we apply) has the shield only connected to signal ground at the signal source side (marked by a ground-end marking sticker) and one of the internal conductors functions as signal return.
The insulation of the two centre conductors is made of polyethylene foam; one in white, the other in brown.
Surrounding the centre conductors, special treated artificial filler fibres provide a perfect protection against losses caused by increased humidity over a longer period.
The triple shielding consists of 2 helical layers with a total of 180 dense and very pure silver coated strands made of a very high grade of Matched Crystal (MC) OFC with an extra layer of LSC saturated tape in between.
The warm yellow-orange coloured jacket is made of our HULLIFLEX ® 4.
The external diameter of the D - 102 III HYBRID is 7.25 mm.; a size which perfectly matches our C - 7.3 RCA type connectors.

Specifikationer:
Cable Type:  Triple screened twin core (Balanced)
Conductor Material:  HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s)
Design Purpose/
Application Area(s):  Balanced and unbalanced audio interconnect
Eff. Conductor Ø/Eq. AWG No./Strands:  Cores: 0.31 mm² / Cores: ~AWG 22 / Cores: 40; Screen: 180
External Diameter /
Dimensions:  7.25 mm.
Resistance 20 °C / 68 °F:  Cores: 5.5 Ohm/100 m.; Screen: 0.62 Ohm/100 m.
Capacitance:  Core-core: 37 pF/m.
Characteristic Impedance:  ~110 Ohm (in balanced configuration); Allows AES-EBU standard digital audio transmission
Insulation / Dielectric Strength / Test Voltage:  Cores: PE foam; Jacket: HULLIFLEX ® 4 / 300 Vrms min.
Connector Types Suitable:  Our RCA type C - 7.3 or Neutrik XLR; Custom mountable on ordered lengths.
Jacket Colours Available:  Yellow-orange
