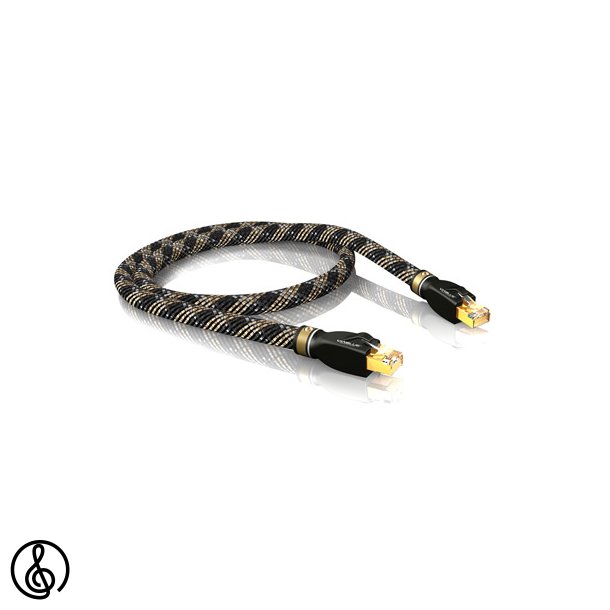

Viablue EP-7 Silver Netværkskabel


Pris fra:

735,00 DKK

Product picture

Produkt varianter


10.0 meter

Længde: 10.0 meter

Model/Varenr.: 98771

1.730,00 DKK

7.5 meter

Længde: 7.5 meter

Model/Varenr.: 98770

1.470,00 DKK

0.5 meter

Længde: 0.5 meter

Model/Varenr.: 98763

735,00 DKK

1.0 meter

Længde: 1.0 meter

Model/Varenr.: 98764

788,00 DKK

1.5 meter

Længde: 1.5 meter

Model/Varenr.: 98765

840,00 DKK

2.0 meter

Længde: 2.0 meter

Model/Varenr.: 98766

890,00 DKK

3.0 meter

Længde: 3.0 meter

Model/Varenr.: 98767

995,00 DKK

4.0 meter

Længde: 4.0 meter

Model/Varenr.: 98768

1.100,00 DKK

5.0 meter

Længde: 5.0 meter

Model/Varenr.: 98769

1.200,00 DKK

Beskrivelse



    Silver-plated strands made of pure OFC copper
    100% shield coverage by a total of 5 layers (braided shield and 4 aluminium foil shields). This prevents any distortion and jitter no matter which frequency such as mobile phone signals
    Soft banding
    Satin mat sheath: highly flexible and ultra resistant

    ViaBlue™ EP-7 Silver network cables are fitted with ViaBlue™ T6s RJ-45 LAN plugs and ViaBlue™ Cobra braided sleeves.





Technical specifications:

    Silver-plated OFC copper strands
    100% shield coverage: 1 braided shield, 4 aluminium foil shields
    Insulation: Highly flexible and extremely resistant sheath
    Outer diameter of cable incl. braided sleeve: 9.5 mm
    AWG 26/7
    Bending radius 4 x Ø
    Operating capacity, nominal 45 nF / km
    Relative propagation velocity, approx. 0.76 C
    Characteristic impedance 1-100 MHz = 100 +/- 15 ohms
    Characteristic impedance = 100-250 MHz = 100 +/- 22 ohms
    Characteristic impedance 250-600 MHz = 100 +/-25 ohms
    Shield attenuation up to 600 MHz > 60 dB
    T6s RJ-45 plug | gold plated
    Cat6A
