ViaBlue QTC Spikes 4 stk.

Pris fra 570,00 DKK

ViaBlue QTC Spikes receive vibrations from vibrating bodies such as speakers (such as diaphragms) and devices (such as transformers) and reduce them. Maximum pressure builds up at connection point between vibrating bodies and their bases, using a high mass concentrated on three minimum points (peaks), The vibrations are eliminated through the extreme pressure points. This leads to vibration absorption.


Through the vibration reception disk, vibrations are received on the rotary plate with adjustable height. The vibrations gathered in the main cone are deflected. Excess pressure builds up and is transferred to the especially hardened points. On the equally identically hardened absorption master disk, a maximum pressure point is then created. The vibrations are eliminated.

ViaBlue QTC spikes are manufactured from brass. The components subject to pressure (master disk, peak) are hardened with steel. The circumference at the widest point of a QTC spike is 30 mm. The initial height is 34 mm. The principal height adjustment may extend the initial height by another 5 mm. A second height adjustment can be achieved by shifting the peak and the threaded rod. As a rule, the principal height adjustment between the rotary disk and main cone is sufficient.

In this way, the vibrations of speakers and devices are not transmitted to furnishings and buildings and do not cause any static noise.

The functional principle of the QTC spikes is broken down into four task areas:

1.) reception of vibrations
2.) gathering of the vibrations received
3.) concentration of the received vibrations on one pressure point
4.) deflection of the absorbed vibrations on the base

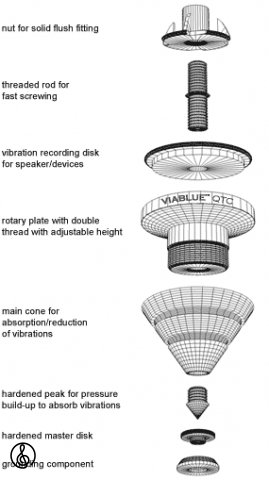

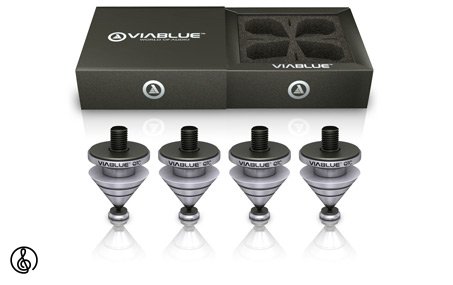

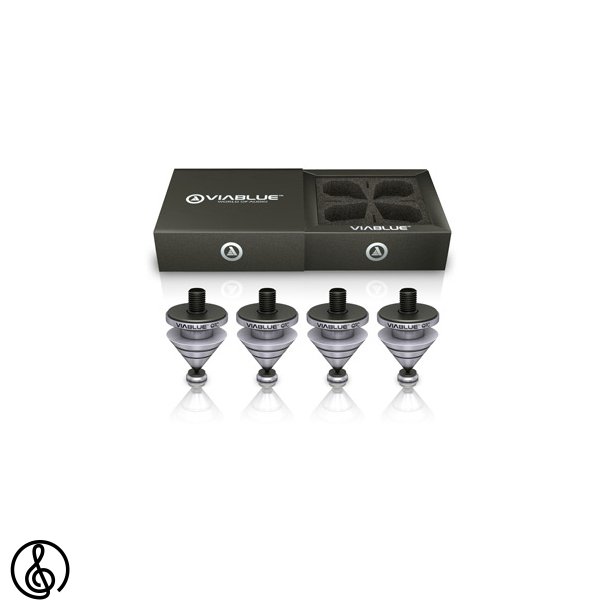

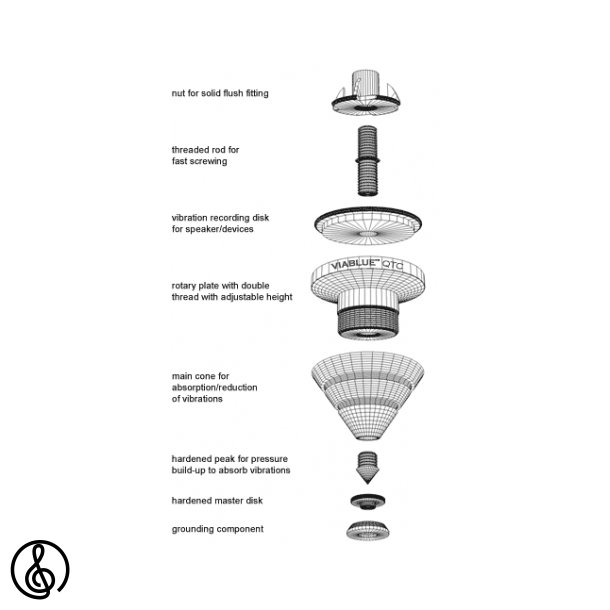

A total of 4 spikes per set are included in the delivery. A spike consists of: a grounding component with attached master disk, steel-hardened peak, main cone, rotary disk of adjustable height with attached vibration reception disk, M6 threaded rod and an M6 drive-in nut.

Prisen er for et sæt med 4 stk QTC Spikes.



Bestillingsseddel

Varer   Pris Note   Køb antal

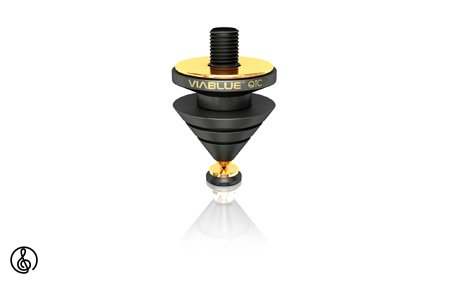

ViaBlue QTC Spikes 4 stk. Sort
Model/Varenr.: 98146
ViaBlue QTC Spikes 4 stk. 570,00 DKK Leveringstid: 1-2 dage
stk.

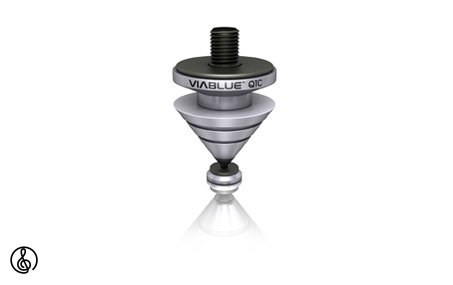

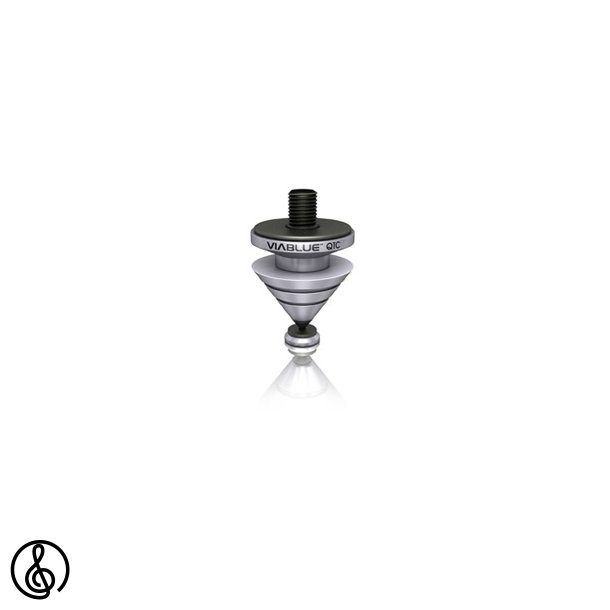

ViaBlue QTC Spikes 4 stk. Sølv
Model/Varenr.: 98147
ViaBlue QTC Spikes 4 stk. 570,00 DKK Leveringstid: 1-2 dage
stk.
