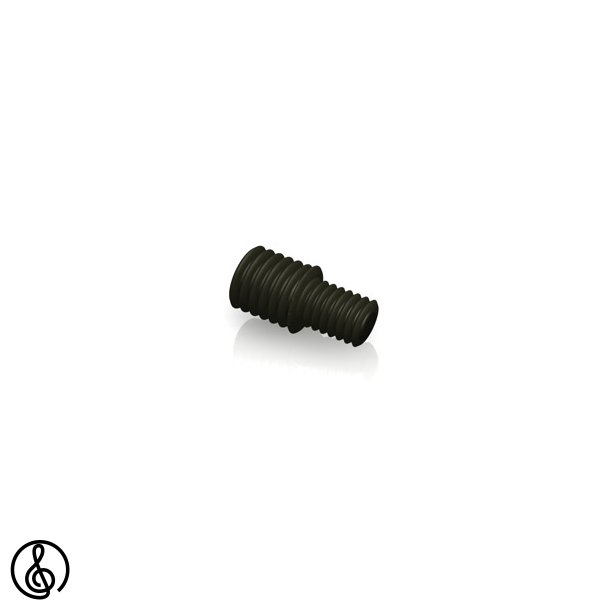

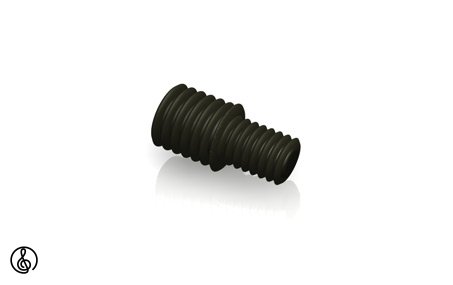

Optional thread sticks with different thread sizes.
ViaBlue™ QTC and HS spikes include M6 thread sticks. Optionally other types with thread sizes M4, M8, M10, M12 and M6/¼"-20 UNC are available. Spikes can be installed easily by using the right thread type fitting to your speaker's build in threads.

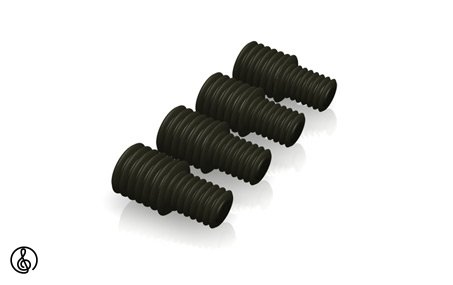

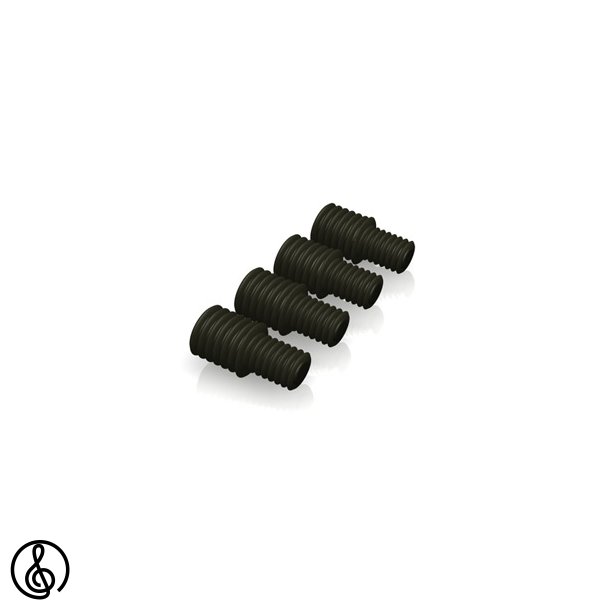

Prisen er for et sæt med 4 gevindstænger.
ViaBlue™ thread sticks | basic information
Metric threads, ISO threads DIN 13, angle 60°
thread type
outter diameter
gradient
core hole diameter
M4 (Optionally for QTC, HS spikes)
4 mm (0.157 inch)
0.7 mm
3.2 mm
M6 (Standard for QTC, HS spikes)
6 mm (0.236 inch)
1.0 mm
4.9 mm
M8 (Optionally for QTC, HS spikes)
8 mm (0.315 inch)
1.25 mm
6.6 mm
M10 (Optionally for QTC, HS spikes)
10 mm (0.0.394 inch)
1.5 mm
8.4 mm
M12 (Optionally for QTC, HS spikes)
12 mm (0.472 inch)
1.75 mm
10.1 mm
UNC (Unified Coarse Thread Series) British-American unit threads, angle 60°
