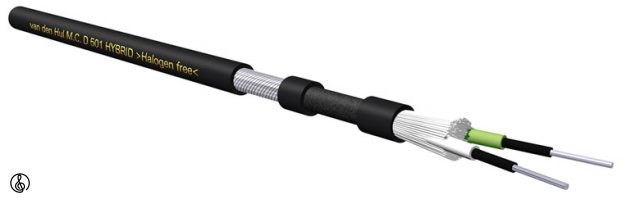

VDH D-501 Hybrid Signalkabel

165,00 DKK

To support the tone-arm and mixing console industry, this mat black HULLIFLEX ® 3 jacketed balanced cable was designed: very flexible and with extremely good electrical qualities.
The D - 501 HYBRID is a cable with a very high shielding factor.
Sonically this is one of the best cables in our program. Not really expensive and with a very high performance quality. The D - 501 HYBRID is regularly used as a microphone cable in critical professional recordings and as a standard product for e.g. SME in England together with the prestigious Type V tonearm. This already since 1987.

The 2 signal lines are made each of 19 x 0.1 mm. very high grade OFC wires with the highest density of very pure silver coating.
As an extra layer around the metal group, we use a Linear Structured Carbon ® (LSC) saturated coating.
The signal line insulation with the colours white and yellow is made of cell-PE, so the stripping can even be done with your fingernails to prevent wire damage on the silver coated copper strands commonly caused by mechanical stripping.
The resistance per signal lead is: 11.3 Ohm/100 meter.
The capacitance between the 2 signal leads is: 75 pF/meter.
Very flexible specially treated artificial fibres are used as a filler to prevent any harm caused by external humidity or chemicals.
The shielding consists of 96 x 0.10 mm. wires of a high grade Matched Crystal (MC) OFC with a dense and very pure silver coating and a LSC saturated helical tape.
The resistance of the shielding is: 2.3 Ohm/100 meter.
The very flexible black outer jacket is made of migration-free HULLIFLEX ® 3 to prevent any chemical deterioration over a long period.
The type printing repeats every 25 cm. (10") to make cutting of specified lengths easy.
The external cable diameter is: 4.5 mm.

Specifikationer:

Cable Type:  Screened twin core (Balanced)
Conductor Material:  HYBRID: High purity dense Silver coated high purity OFC + Linear Structured Carbon ® saturated layer(s)
Design Purpose/
Application Area(s):  Tonearm and mixing console / tonearm to preamp, microphone and interlink cable
Eff. Conductor Ø/Eq. AWG No./Strands:  Cores: 0.15 mm² / Cores: AWG 25.4 / Cores: 19; Screen: 96
External Diameter /
Dimensions:  4.5 mm.
Resistance 20 °C / 68 °F:  Cores: 11.3 Ohm/100 m.; Screen: 2.3 Ohm/100 m.
Capacitance:  Core-core: 75 pF/m.
Insulation / Dielectric Strength / Test Voltage:  Cores: Cell PE; Jacket: HULLIFLEX ® 3 / 300 Vrms min.
Connector Types Suitable:  Our RCA type C - 5.5; Our tonearm connector; Neutrik XLR; Neutrik 1/4" (6.3 mm.) Jack/Phone plug; Custom mountable on ordered lengths.
Jacket Colours Available:  Black
Remarks:  Our D - 501 SILVER HYBRID is a silver core version of this cable.
For a twin line version of this cable please refer to our D - 502 HYBRID.

Prisen er pr. meter. Kablet er utermineret.
