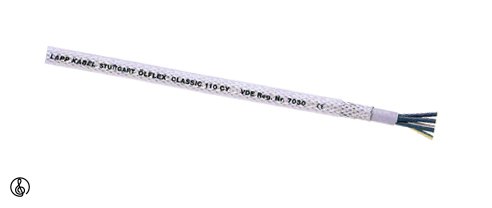

Ölflex Classic 110 CY Powerkabel

65,00 DKK


Model/Varenr.: 99173
Lagerstatus: Leveringstid: 1-2 dage
Meter

Prisen er pr. utermineret meter

3x2,5 mm2

The copper-screen braided control cable
New design, VDE Reg.No 7030.

Suitable for use where interference can prevent accurate signal transmission in low or medium voltage installations.


Ölflex® CLASSIC number coded CY provides the electronics engineer with a cable for the transmission of low or medium voltage signals free from external inference. They can also be utilised where the power engineer needs to use screened cables to prevent interference from electro magnetic fields generated in the network.


SPECIFICATION
Cores of fine wire strands of plain electrolytic copper wire with PVC-based conductor insulation cores twisted in layers with an internal sheath covering of a special PVC-based compound and screening braid of tinned copper wire. Outer sheath of transparent PVC-based compound.

TECHNICAL DATA

Minimum bending radius for flexing:
 15 x cable diameter

Temperature range:
 Flexing: -5°C to +70°C
Static: -30°C to +70°C

Working voltage:
 300/500 V

Conductor stranding:
 fine wire to BS6360, Class 5, VDE 0295 Class 5

Colour code:
 up to 5 cores:VDE 0293, BS6500
from 6 cores: Black Cores/white numbers.

In accordance with VDE Regulations:
 VDE Reg No. 7030
