Perfekt til digitale og analoge kabler. Tager op til 9 mm kabel. Prisen er for et sæt med 4 stik.
The ideal RCA type connector for analogue connections

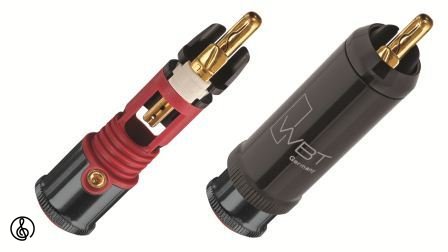

The RCA plug WBT-0114 is a product of the nextgen™ series, the next generation of WBT‘s RCA type connectors. The model WBT-0114 offers a perfect combination of a robust, stable plug body and a filigree signal conductor with reduced mass placed in the front part of the plug.
The clamping sleeve enables a perfect shielding against electromagnetic interfering fields. This is why WBT-0114 is excellently suited for analogue outputs of low-level phono range, i.e. turntables (moving coil, moving mag net), microphones etc. since undesirable interspersions can be very high there depending on the nature of the devices and on what they are surrounded by (cellular phones, computers etc.).
The contact quality of conventional RCA type plugs are often undeniably poor. They “sit” in the socket rather badly. It is a matter of fact that e.g. the outer contact of RCA type sockets varies between 7.95 and 8.55 mm dia.! WBT has developed the patented collect chuck device in order to enable a firm fit of the plug in the socket being necessary for a good contact as well as a constant high pressure. The patented collet chuck device makes it possible for WBT RCA plugs to adjust to all kind of RCA type sockets so perfectly. You turn the outer sleeve in the direction of the cable and the sleeve‘s cone presses the three outer contact elements firmly together. This not only provides for the necessary high contact pressure but also clamps the plug firmly to the socket. Consequently, the transition resistance is not only extremely low, but first of all very stable.
The central contact unit minimalist with regard to the applied metal mass (mass storage effect ), however all signal conductors are made of pure (soft) copper. Nevertheless, the hybrid construction enables to reach high mechanical stability. The signal transfer is very dynamic and precise. The bandwidth has a linear course up to ≥ 400 MHz at 75 Ω characteristic impedance which makes the connector fully digital.
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| Beipack_WBT-0114_dt-engl_Vorschau_01.pdf | 137.64KB | Download | |
| WBT0114_Cu_engl.pdf | 163.33KB | Download |
