The REVOLUTION HYBRID (Halogen Free)
During the great success of The REVELATION HYBRID, there was the question if it was possible to produce a lower priced version.
This was the moment The REVOLUTION HYBRID was born: a single-lead loudspeaker cable with the same sonic properties but smaller in size.

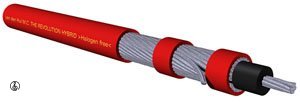

The general construction is the same as with The REVELATION HYBRID:
First an inner group with 308 x 0.14 mm. very high grade Matched Crystal (MC) OFC strands with a dense coating of very pure silver. The inner group exhibits a total metal cross-section area of 4.74 mm².
Covering this core is a Linear Structured Carbon ® (LSC) saturated layer which bridges minor defects and captures and transforms the radiated magnetic field of the inner conductor to an audio signal again.
The helically wound outer conductor structure employs the same silver coated MC OFC metal quality as found in the core and consists of 16 separate conductors, each with 19 strands of 0.11 mm. This produces a metal cross-section area of 2.89 mm². These 16 outer conductors are individually insulated and are standardly wired in parallel with the centre conductor, giving a single lead cable. Their being individually insulated however also allows them to be wired together as a separate signal return. (Versions wired as such and fit with matching connectors are available either as twin-lead speaker cable or as single-ended interconnect on special customer demand).
The total metal cross-section area of The REVOLUTION HYBRID is 7.63 mm² giving the cable its very low resistance of 0.226 Ohm/100 m.
The outer jacket is made of red HULLIFLEX ® 3, a mechanically superb insulation material.
The REVOLUTION HYBRID can also be used as a fantastic single-ended interconnect in combination with our C - 8.4 RCA type connector.
Sonic report: The REVOLUTION HYBRID renders a very spacious and detailed structure without any specific accent on high frequencies.
Kablet kan både bruges som højttaler og signalkabel. Læg mærke til at bruges det til højttalerkabel så skal du bestille dobbelt antal meter da det er et enkeltleder kabel.
