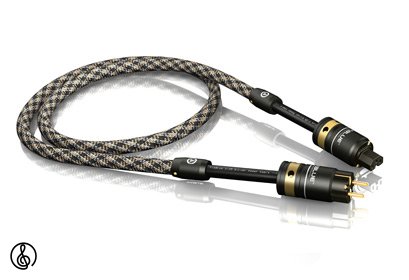

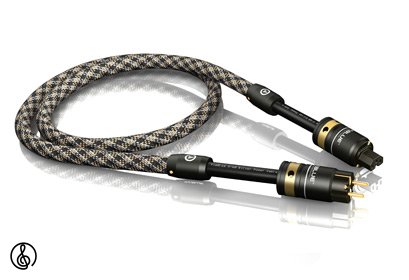

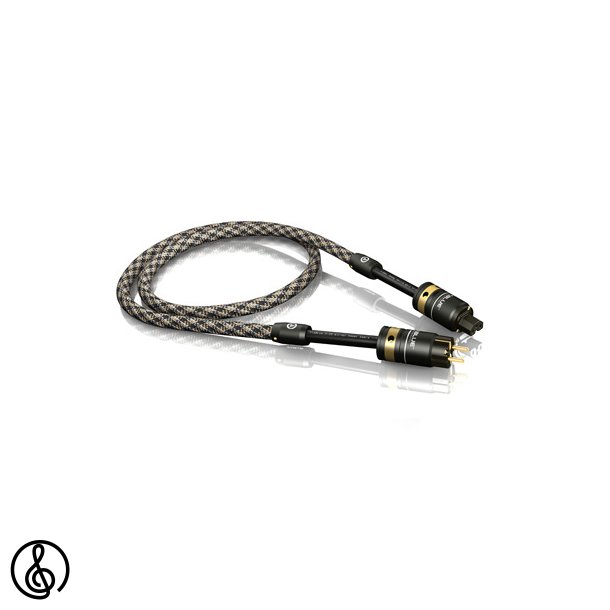

Viablue X-Silver Powerkabel

Pris fra 2.400,00 DKK


Viablue X-Silver Powerkabel
Varer

Pris
Note
Antal

Fully shielded power cables are crucial for high quality audio and video systems. ViaBlue™ power cables block any distortion and thus provide crystal clear and high-purity signals.

100% shielding due to braided shield and aluminium foil sheets

Silver plated copper strands, 3 cores
Certified standards include in cable by meter: VDE (2,5mm²), HAR (2,5mm²), UL, CSA, CE
Maximum hold through double-screwed strain relief

Available pre-assembled with ViaBlue™ T6s power plug, Cobra sleeve and ViaBlue™ Ferrite Filter.



Technical specifications:

    Wire cross-section X-25: 3x 2.5 mm²
    Wire cross-section X-40: 3x 4.0 mm²
    Wire cross-section X-60: 3x 6.0 mm²
    Cable diameter including braided sleeve X-25: 14.5 mm
    Cable diameter including braided sleeve X-40: 16.0 mm
    Cable diameter including braided sleeve X-60: 18.5 mm
    Shield structure: ALU-PE foil as well as 32x 0.10 strands GS
    2 layers: aluminium foils and braided shield
    Finishing: silver plated / tin plated
    Insulation resistance: > 20 MOhm x KM
    Insulation: PVC, TM2 mix VDE 0472
    Certified testing voltage: 3000 Volt
    Strand identification: black | Blue | yellow-green
    Certifications of cable by meter: VDE (2,5mm²), HAR (2,5mm²), UL, CSA, CE
